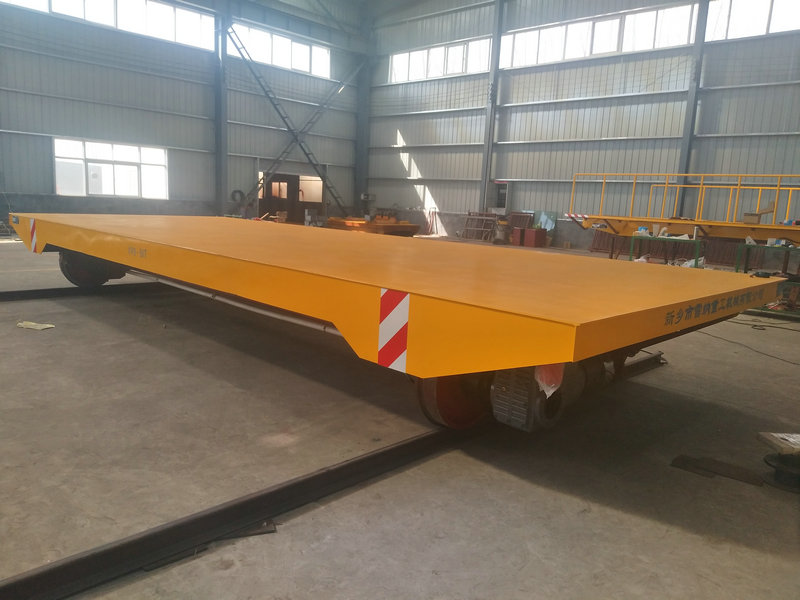

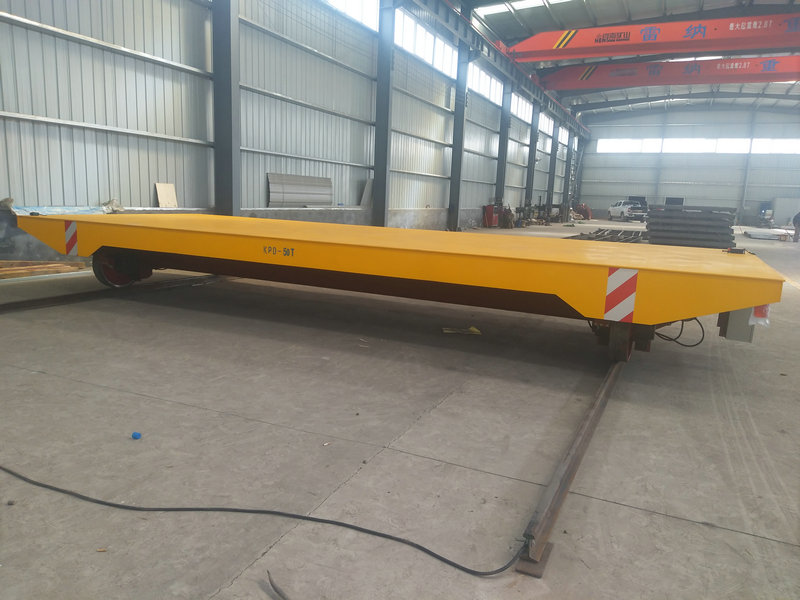

The KPD Rail Electric Transfer Cart is a high-performance material handling solution designed for industrial factories, production workshops, and assembly lines.
Powered by a low-voltage rail system, it ensures continuous power supply, smooth operation, and high safety, making it ideal for frequent, heavy-duty transport tasks inside plants.

This cart can handle a wide range of loads from 1 ton to over 300 tons, and is widely used for moving molds, machinery parts, steel structures, and raw materials between production areas.

2. Working Principle

The KPD series uses 36V or 48V low-voltage power supplied directly from the steel rails.
A step-down transformer converts standard AC 380V into safe low-voltage current, which is then transmitted to the cart wheels to drive the electric motor.
This system eliminates the need for batteries or cables, offering uninterrupted operation and low maintenance costs — ideal for long-term, repetitive transfers.

 Key Features

Continuous Low-Voltage Power Supply

• No charging or cable dragging — designed for 24/7 operation.

• Stable power and high reliability for production lines.

Strong Load Capacity

• Heavy-duty welded steel structure.

• Available load range from 1 ton up to 300 tons.

Flexible Control Options

• Operated via wired pendant, wireless remote, or PLC system.

• Variable speed control via VFD (Variable Frequency Drive) for smooth acceleration.

Comprehensive Safety System

• Includes emergency stop, limit switches, acoustic-light alarm, and overload protection.

• Optional collision avoidance sensors or automatic stop system for added safety.













Technical Description

• Model Type: KPD Low-Voltage Rail Electric Transfer Cart

• Rated Load Capacity: 1–300 tons (customized)

• Power Supply: 36V/48V low-voltage rail power

• Drive Type: AC motor with reducer gearbox

• Speed Range: 0–20 m/min (adjustable)

• Rail Type: P18–P50 standard steel rail

• Control Mode: Remote / Pendant / PLC automation

• Turning Option: Straight or curved rail layout

• Safety Devices: Alarm, limit switch, emergency stop, over-current protection
