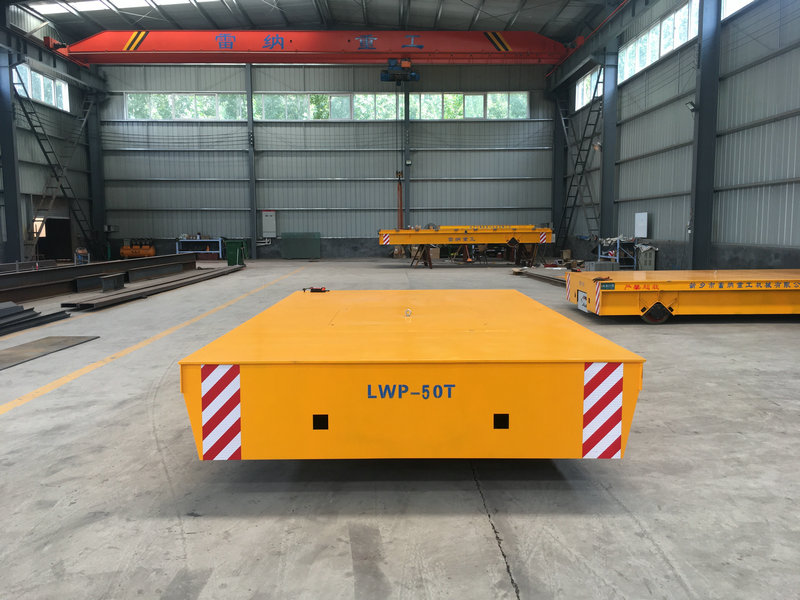

The 50-ton electric flatbed trolley is designed for internal logistics and heavy material transport across production lines, assembly stations, or warehouses.
It can be configured as a rail-mounted or trackless model, depending on the customer’s factory layout and application needs.
Equipped with a dual-motor drive system and variable-speed control, it offers reliable performance, smooth acceleration, and precise maneuvering under full load conditions.

Main Technical Features

• Load Capacity: 50 tons (customizable from 10–200 tons).

• Power Supply: Battery, cable reel, or low-voltage rail system (optional).

• Drive Type: AC/DC electric drive with gear reduction.

• Platform Type: Flatbed structure (customizable size and surface finish).

• Wheel Type: Forged steel (rail type) or polyurethane (trackless type).

• Operation Mode: Remote control + onboard control panel.

• Frame Structure: Heavy-duty welded steel chassis (Q345B or equivalent).

• Running Speed: Adjustable, 0–20 m/min standard.

Performance Advantages

1. High Load Capacity & Stability

   • Robust chassis supports continuous loads up to 50 tons.

   • Reinforced structure ensures minimal deflection and long service life.

2. Flexible Power Options

   • Available with battery, cable reel, or low-voltage rail power supply.

   • Adaptable to indoor, interbay, or long-distance transport needs.

3. Reliable Electrical System

   • Equipped with industrial-grade drive motors and control circuits.

   • Soft start/stop technology ensures safe, shock-free movement.

4. Safe and User-Friendly Control

   • Wireless remote or onboard operation panel for flexible control.

   • Emergency stop, alarms, and safety sensors ensure operational safety.

5. Customizable Platform Design

   • Flat, V-frame, or roller deck available for different load shapes.

   • Optional hydraulic lifting or turntable function for advanced handling.

Applications

• Steel plants & foundries — handling heavy steel plates, beams, or coils.

• Machinery manufacturing — movement of large machines, tools, and parts.

• Mold industry — transport of injection or stamping molds.

• Shipyards & aerospace factories — transfer of large components and assemblies.

• Warehouse and logistics systems — internal transfer between production zones.
